Iscar

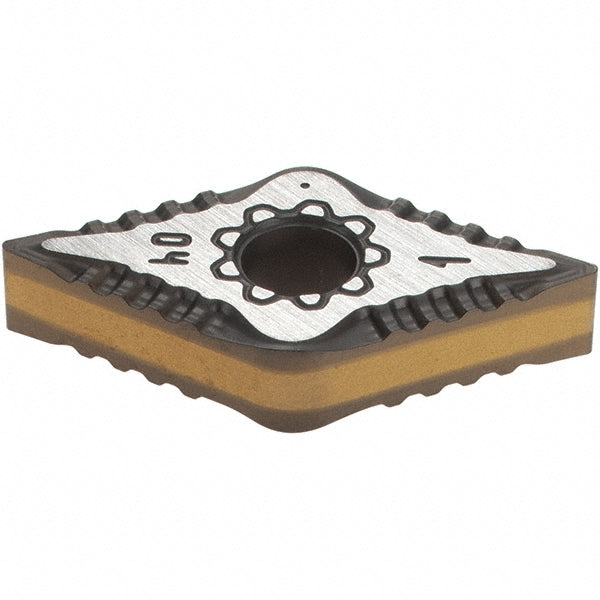

DNMG 431-F3P Solid Carbide Insert, Grade IC8150, TiCN - Iscar 5566818
MFR# 5566818ISO/ANSI# DNMG 431-F3PSeries Isoturn
$24.17List $31.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC8150
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5566818 is a DNMG 431-F3P solid carbide indexable insert, grade IC8150, TiCN coated. Suited for cast iron, steel.
Specifications
Chip breakerF3P
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Full radiusNo
Included angle55.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.6100
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 431-F3P
Length range0.6000 - 0.6500
Manufacturer gradeIC8150
Maximum depth of cut0.1180
Primary workpiece materialCast Iron; Steel
RakePositive
Relief angle0
Secondary workpiece materialNone
Single or double endDouble
StandardsISO 13399
Tolerance codeM
