Iscar

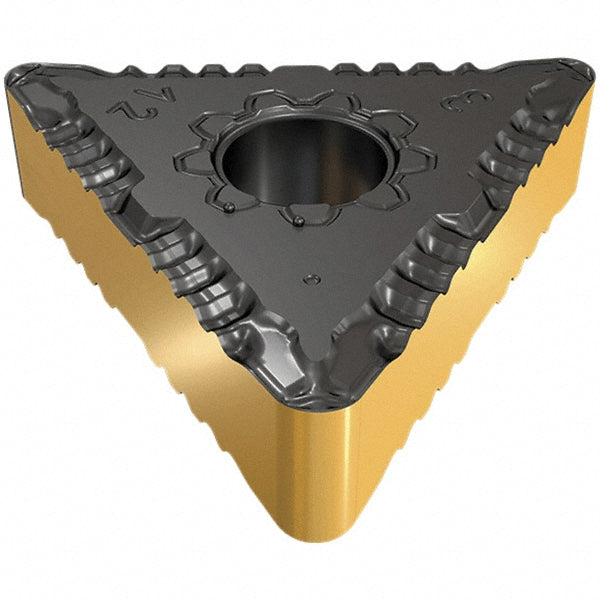

TNMG 331-F3P Solid Carbide Insert, Grade IC8150, TiCN - Iscar 5566834
MFR# 5566834ISO/ANSI# TNMG 331-F3PSeries Isoturn
$14.19List $18.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeIC8150
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5566834 is a TNMG 331-F3P solid carbide indexable insert, grade IC8150, TiCN coated. Suited for cast iron, steel.
Specifications
Chip breakerF3P
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Full radiusNo
Included angle60.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.6500
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code331
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 331-F3P
Length range0.6500 - 0.7000
Manufacturer gradeIC8150
Maximum depth of cut0.0790
Primary workpiece materialCast Iron; Steel
RakePositive
Relief angle0
Secondary workpiece materialNone
Single or double endDouble
StandardsISO 13399
Tolerance codeM
