Iscar

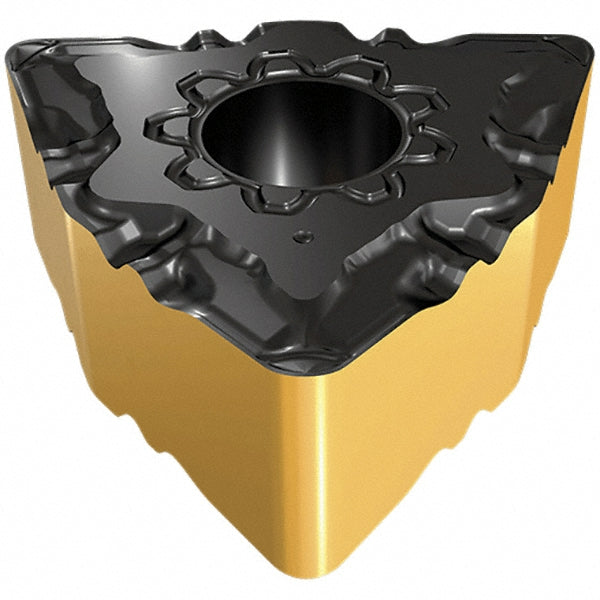

WNMG 431-F3P Solid Carbide Insert, Grade IC8150, TiCN/Al2O3/TiCN/TiN - Iscar 5566846
MFR# 5566846ISO/ANSI# WNMG 431-F3PSeries Isoturn
$19.49List $25.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeIC8150
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiCN/TiN
Description
The Iscar 5566846 is a WNMG 431-F3P solid carbide indexable insert, grade IC8150, TiCN/Al2O3/TiCN/TiN coated. Suited for cast iron, steel.
Specifications
Chip breakerF3P
Clearance codeN
Coating finishTiCN/Al2O3/TiCN/TiN
Coating processCVD
Corner radius in1/64
Full radiusNo
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.3430
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code431
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 431-F3P
Length range0.3000 - 0.4000
Manufacturer gradeIC8150
Maximum depth of cut0.1380
Primary workpiece materialCast Iron; Steel
RakePositive
Relief angle0
Secondary workpiece materialNone
Single or double endDouble
StandardsISO 13399
Tolerance codeM
