Iscar

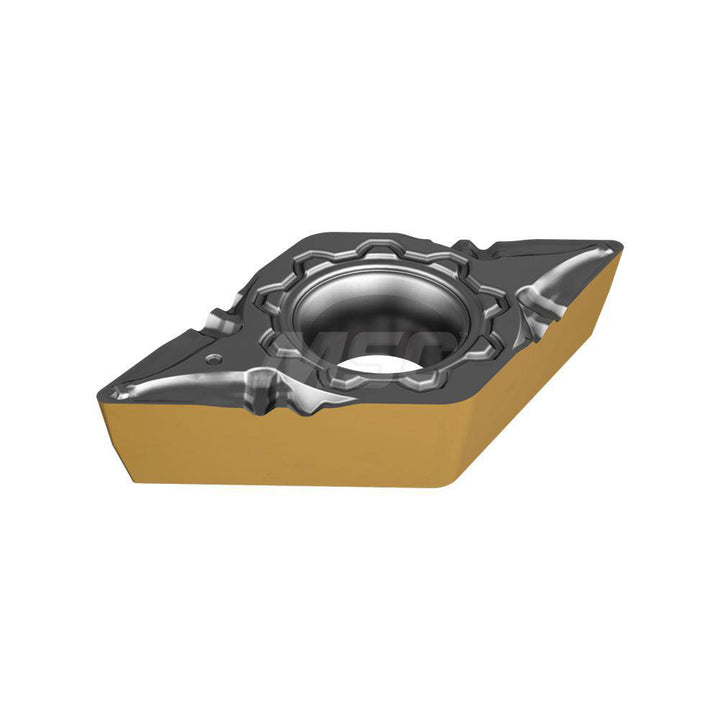

DCMT 3-1-F3P Solid Carbide Insert, Grade IC8150, TiCN - Iscar 5566869
MFR# 5566869ISO/ANSI# DCMT 3-1-F3PSeries Isoturn
$21.13List $27.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeIC8150
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5566869 is a DCMT 3-1-F3P solid carbide indexable insert, grade IC8150, TiCN coated. Suited for k, m, p.
Specifications
Chip breakerF3P
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius0.0160
Hole diameter0.1730
Included angle55.0
Inscribed circle0.3750
Insert handRight Hand
Insert length0.4570
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code3-1
Insert styleDCMT
Insert thickness0.1560
Iso codeDCMT 3-1-F3P
Length range0.4000 - 0.5000
Manufacturers catalog number5566869
Manufacturer gradeIC8150
Maximum depth of cut0.0790
Multi use applicationTurning
Primary workpiece materialK; M; P
RakePositive
Relief angle7
Secondary workpiece materialNone
StandardsISO 13399
Tolerance codeM
