Iscar

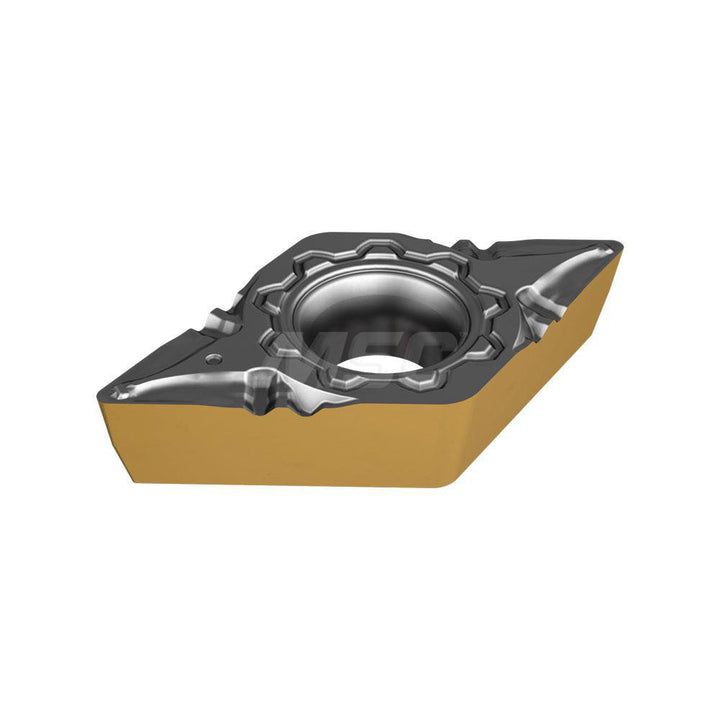

ISO 13399 Carbide Insert, Grade IC8250, AI2O3 - Iscar 5566872
MFR# 5566872ISO/ANSI# ISO 13399Series Isoturn
$21.13List $27.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeIC8250
MaterialCarbide
CoatingAI2O3
Description
The Iscar 5566872 is a ISO 13399 carbide indexable insert, grade IC8250, AI2O3 coated. Suited for stainless steel, steel.
Specifications
Chip breakerF3P
Clearance codeC
Coating finishAI2O3
Coating processCVD
Corner radius0.0157
Hole diameter0.1730
Included angle55
Insert materialCarbide
Insert shapeDiamond
Insert size code3-1
Insert styleDCMT
Iso codeISO 13399
Manufacturer gradeIC8250
Maximum depth of cut0.0790
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
