Iscar

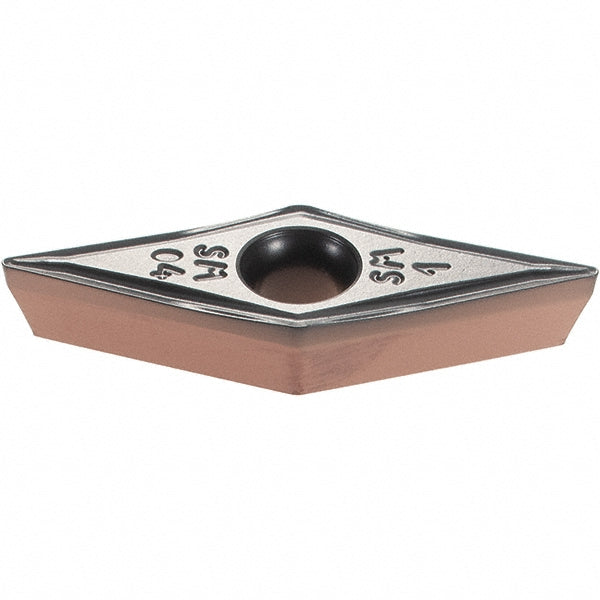

VCMT 331-SM Solid Carbide Insert, Grade IC6025, TiCN - Iscar 5566927
MFR# 5566927ISO/ANSI# VCMT 331-SMSeries Isoturn
$27.53List $35.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC6025
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5566927 is a VCMT 331-SM solid carbide indexable insert, grade IC6025, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Full radiusNo
Hole diameter0.1730
Included angle35.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.6540
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code331
Insert styleVCMT
Insert thickness in3/16
Iso codeVCMT 331-SM
Length range0.6500 - 0.7000
Manufacturer gradeIC6025
Maximum depth of cut0.0980
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
Secondary workpiece materialNone
Single or double endSingle
StandardsISO 13399
Tolerance codeM
