Iscar

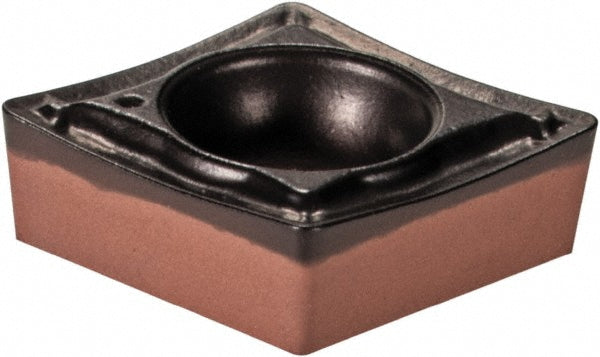

CCMT 2-1-SM Solid Carbide Insert, Grade IC6015, TiCN - Iscar 5566932
MFR# 5566932ISO/ANSI# CCMT 2-1-SMSeries Isoturn
$14.89List $19.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeIC6015
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5566932 is a CCMT 2-1-SM solid carbide indexable insert, grade IC6015, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Full radiusNo
Hole diameter0.1100
Included angle80.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.2540
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code2-1
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT 2-1-SM
Length range0.0000 - 0.3000
Manufacturer gradeIC6015
Maximum depth of cut0.0980
Multi use applicationBoring; Chamfering
Multi use toolYes
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
Secondary workpiece materialNone
Single or double endSingle
StandardsISO 13399
Tolerance codeM
