Iscar

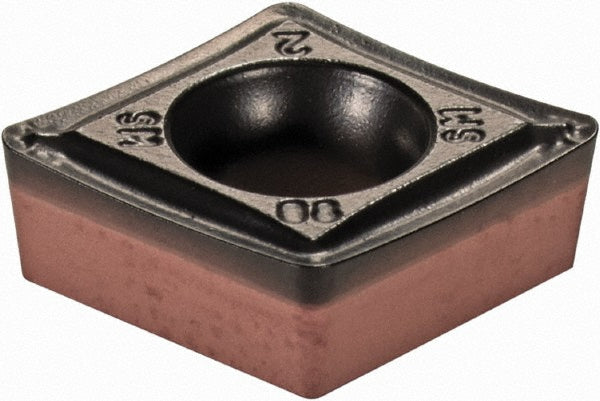

CCMT 3-2-SM Solid Carbide Insert, Grade IC6015, TiCN - Iscar 5566934
MFR# 5566934ISO/ANSI# CCMT 3-2-SMSeries Isoturn
$17.00List $21.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC6015
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5566934 is a CCMT 3-2-SM solid carbide indexable insert, grade IC6015, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Full radiusNo
Hole diameter0.1730
Included angle80.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.3820
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code3-2
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT 3-2-SM
Length range0.3000 - 0.4000
Manufacturer gradeIC6015
Maximum depth of cut0.1180
Multi use applicationBoring; Chamfering
Multi use toolYes
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
Secondary workpiece materialNone
Single or double endSingle
StandardsISO 13399
Tolerance codeM
