Iscar

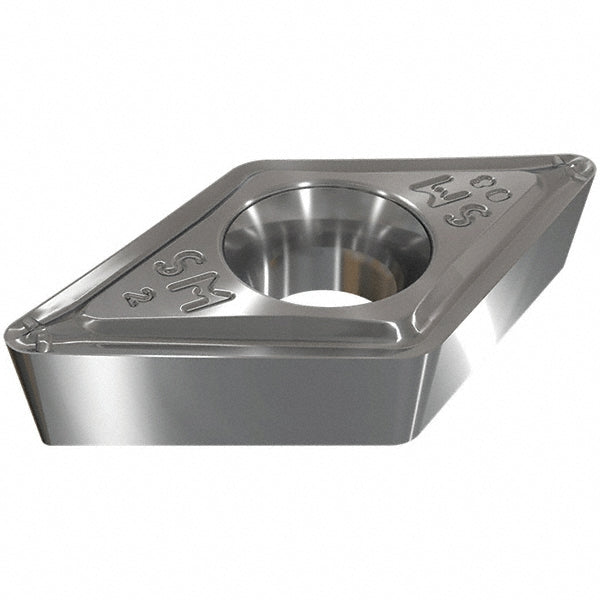

DCMT 3-2-SM Carbide Insert, Grade IC6025, TiCN - Iscar 5566937
MFR# 5566937ISO/ANSI# DCMT 3-2-SMSeries Isoturn
$21.13List $27.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC6025
MaterialCarbide
CoatingTiCN
Description
The Iscar 5566937 is a DCMT 3-2-SM carbide indexable insert, grade IC6025, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Full radiusNo
Hole diameter0.1730
Included angle55
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.4570
Insert materialCarbide
Insert shapeDiamond
Insert size code3-2
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT 3-2-SM
Length range0.4000 - 0.5000
Manufacturer gradeIC6025
Maximum depth of cut0.1180
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
