Iscar

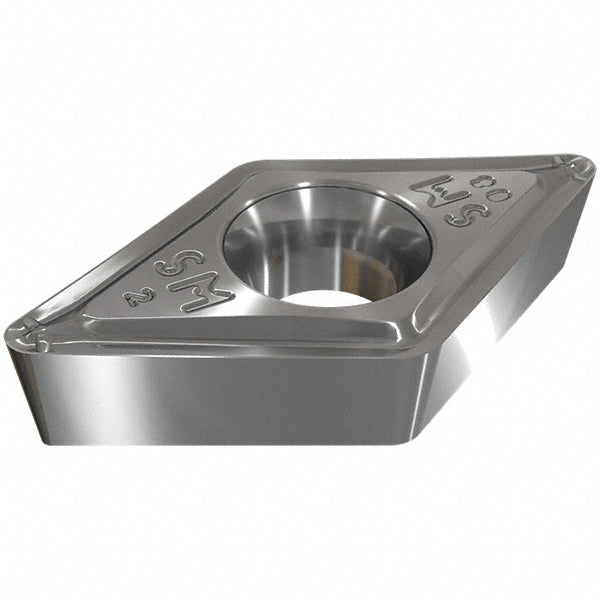

DCMT 3-0-SM Solid Carbide Insert, Grade IC6025, TiCN - Iscar 5566944
MFR# 5566944ISO/ANSI# DCMT 3-0-SMSeries Isoturn
$21.13List $27.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeIC6025
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5566944 is a DCMT 3-0-SM solid carbide indexable insert, grade IC6025, TiCN coated. Suited for m.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius0.0080
Hole diameter0.1730
Included angle55.0
Inscribed circle0.3750
Insert handRight Hand
Insert length0.4570
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code3-0
Insert styleDCMT
Insert thickness0.1560
Iso codeDCMT 3-0-SM
Length range0.4000 - 0.5000
Manufacturers catalog number5566944
Manufacturer gradeIC6025
Maximum depth of cut0.0980
Multi use applicationTurning
Primary workpiece materialM
RakePositive
Relief angle7
Secondary workpiece materialNone
StandardsISO 13399
Tolerance codeM
