Iscar

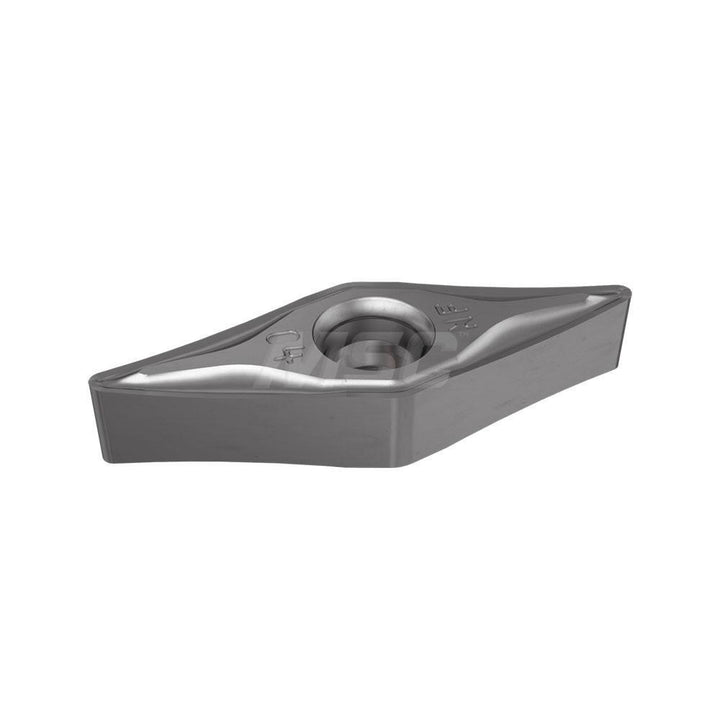

VNMG 331-NF Solid Carbide Insert, Grade IC6025, TiCN - Iscar 5566950
MFR# 5566950ISO/ANSI# VNMG 331-NFSeries Isoturn
$24.71List $31.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeIC6025
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5566950 is a VNMG 331-NF solid carbide indexable insert, grade IC6025, TiCN coated. Suited for m.
Specifications
Chip breakerNF
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius0.0160
Included angle35.0
Inscribed circle0.3750
Insert handRight Hand
Insert length0.6540
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code331
Insert styleVNMG
Insert thickness0.1870
Iso codeVNMG 331-NF
Length range0.6500 - 0.7000
Manufacturers catalog number5566950
Manufacturer gradeIC6025
Maximum depth of cut0.0980
Multi use applicationTurning
Primary workpiece materialM
RakePositive
Secondary workpiece materialNone
StandardsISO 13399
Tolerance codeM
