Iscar

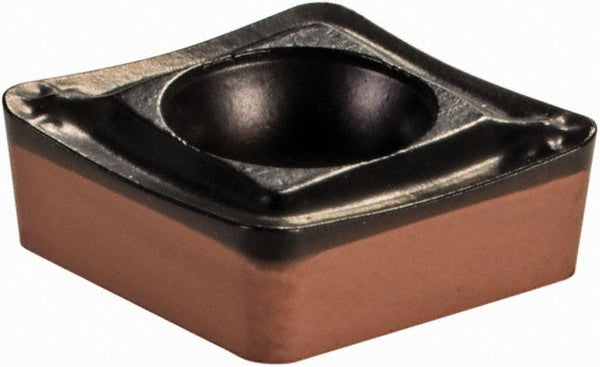

ISO 13399 Carbide Insert, Grade IC6025, AI2O3 - Iscar 5566959
MFR# 5566959ISO/ANSI# ISO 13399Series Isoturn
$14.89List $19.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC6025
MaterialCarbide
CoatingAI2O3
Description
The Iscar 5566959 is a ISO 13399 carbide indexable insert, grade IC6025, AI2O3 coated. Suited for stainless steel.
Specifications
Chip breakerSM
Clearance codeC
Coating finishAI2O3
Coating processCVD
Corner radius0.0315
Hole diameter0.1100
Included angle80
Insert materialCarbide
Insert size code2-2
Insert styleCCMT
Iso codeISO 13399
Manufacturer gradeIC6025
Maximum depth of cut0.0980
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
