Iscar

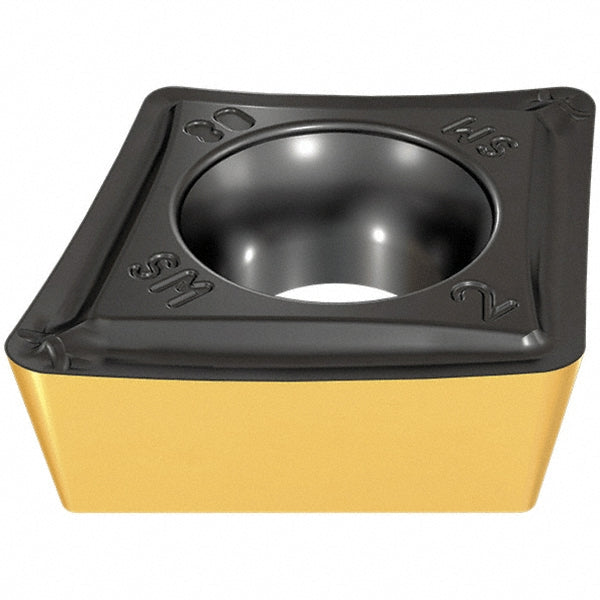

CCMT 3-0-SM Solid Carbide Insert, Grade IC6025, TiCN - Iscar 5566961
MFR# 5566961ISO/ANSI# CCMT 3-0-SMSeries Isoturn
$17.00List $21.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC6025
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5566961 is a CCMT 3-0-SM solid carbide indexable insert, grade IC6025, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0080
Full radiusNo
Hole diameter0.1730
Included angle80.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.3820
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code3-0
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT 3-0-SM
Length range0.3000 - 0.4000
Manufacturer gradeIC6025
Maximum depth of cut0.0980
Multi use applicationBoring; Chamfering
Multi use toolYes
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
Secondary workpiece materialNone
Single or double endSingle
StandardsISO 13399
Tolerance codeM
