Iscar

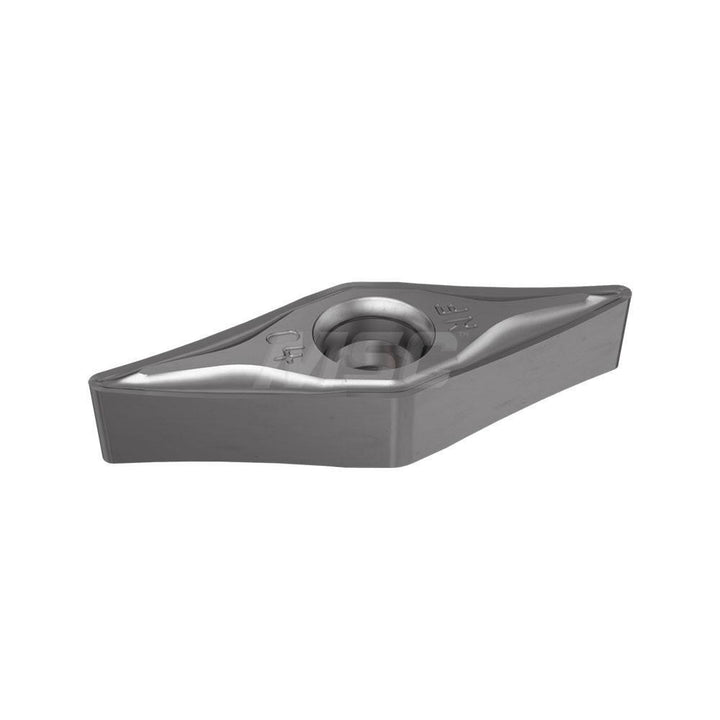

VNMG 2.5-2-NF Solid Carbide Insert, Grade IC6015, TiCN - Iscar 5566962
MFR# 5566962ISO/ANSI# VNMG 2.5-2-NFSeries Isoturn
$19.96List $25.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeIC6015
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5566962 is a VNMG 2.5-2-NF solid carbide indexable insert, grade IC6015, TiCN coated. Suited for m.
Specifications
Chip breakerNF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0310
Included angle35.0
Inscribed circle0.2810
Insert handRight Hand
Insert length0.4880
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code2.5
Insert styleVNMG
Insert thickness0.1560
Iso codeVNMG 2.5-2-NF
Length range0.4000 - 0.5000
Manufacturers catalog number5566962
Manufacturer gradeIC6015
Maximum depth of cut0.1180
Multi use applicationTurning
Primary workpiece materialM
RakePositive
Secondary workpiece materialNone
StandardsISO 13399
Tolerance codeM
