Iscar

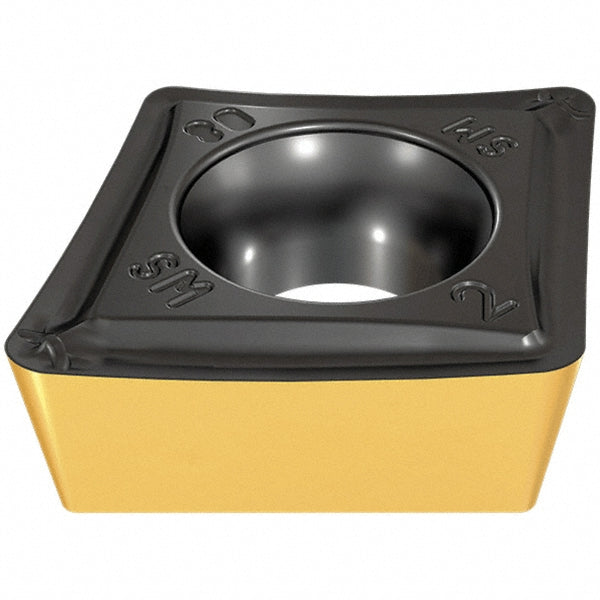

CCMT 432-SM Solid Carbide Insert, Grade IC6025, TiCN/Al2O3/TiN - Iscar 5566965
MFR# 5566965ISO/ANSI# CCMT 432-SMSeries Isoturn
$21.99List $28.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC6025
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Iscar 5566965 is a CCMT 432-SM solid carbide indexable insert, grade IC6025, TiCN/Al2O3/TiN coated. Suited for stainless steel.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiCN/Al2O3/TiN
Coating processCVD
Corner radius in1/32
Full radiusNo
Hole diameter0.2170
Included angle80.0
Inscribed circle in1/2
Insert holding methodScrew
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCCMT
Insert thickness in3/16
Iso codeCCMT 432-SM
Length range0.5000 - 0.6000
Manufacturer gradeIC6025
Maximum depth of cut0.1380
Multi use applicationBoring; Chamfering
Multi use toolYes
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
Secondary workpiece materialNone
Single or double endSingle
StandardsISO 13399
Tolerance codeM
