Iscar

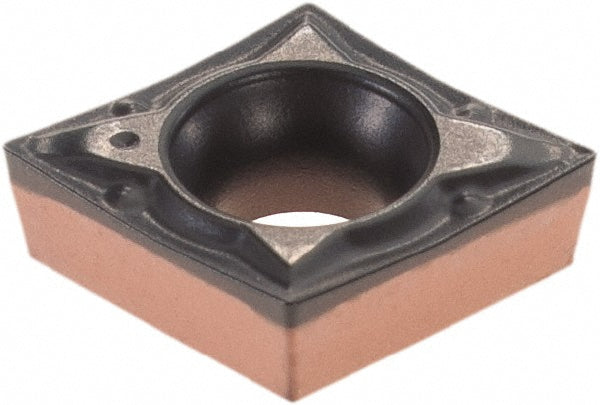

CCMT 2-0-PF Carbide Insert, Grade IC6015, TiCN - Iscar 5566970
MFR# 5566970ISO/ANSI# CCMT 2-0-PFSeries Isoturn
$15.15List $19.10
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
Sold in multiples of 10 — minimum order 10
Check price & lead time first →- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeIC6015
MaterialCarbide
CoatingTiCN
Description
The Iscar 5566970 is a CCMT 2-0-PF carbide indexable insert, grade IC6015, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerPF
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0080
Full radiusNo
Hole diameter0.1100
Included angle80
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.2480
Insert materialCarbide
Insert shapeDiamond
Insert size code2-0
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT 2-0-PF
Length range0.0000 - 0.3000
Manufacturer gradeIC6015
Maximum depth of cut0.0980
Multi use applicationBoring; Chamfering
Multi use toolYes
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
