Iscar

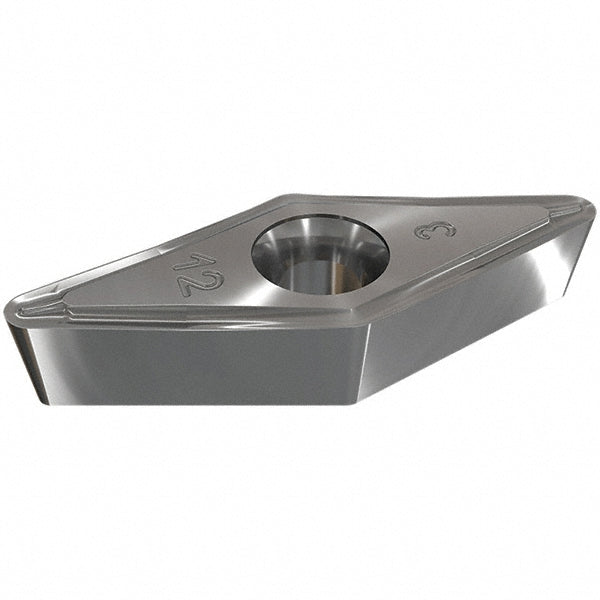

VCMT 330-SM Solid Carbide Insert, Grade IC6025, TiCN - Iscar 5566979
MFR# 5566979ISO/ANSI# VCMT 330-SMSeries Isoturn
$27.53List $35.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeIC6025
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5566979 is a VCMT 330-SM solid carbide indexable insert, grade IC6025, TiCN coated. Suited for m.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius0.0080
Hole diameter0.1730
Included angle35.0
Inscribed circle0.3750
Insert handRight Hand
Insert length0.6540
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code330
Insert styleVCMT
Insert thickness0.1870
Iso codeVCMT 330-SM
Length range0.6500 - 0.7000
Manufacturers catalog number5566979
Manufacturer gradeIC6025
Maximum depth of cut0.0980
Multi use applicationTurning
Primary workpiece materialM
RakePositive
Relief angle7
Secondary workpiece materialNone
StandardsISO 13399
Tolerance codeM
