Iscar

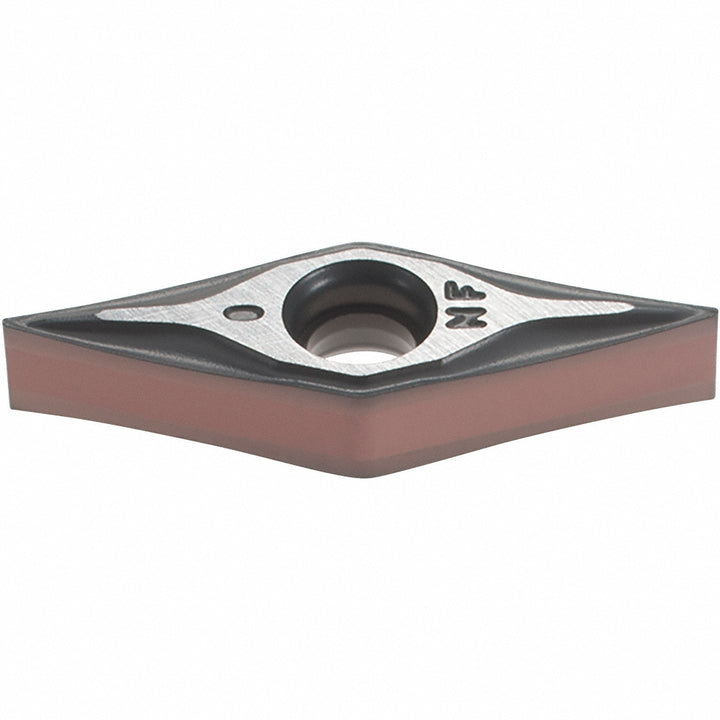

VNMG 2.5-0-NF Solid Carbide Insert, Grade IC6015, TiCN/Al2O3/TiN - Iscar 5566980
MFR# 5566980ISO/ANSI# VNMG 2.5-0-NFSeries Isoturn
$19.96List $25.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/16
ShapeDiamond
GradeIC6015
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Iscar 5566980 is a VNMG 2.5-0-NF solid carbide indexable insert, grade IC6015, TiCN/Al2O3/TiN coated. Suited for stainless steel.
Specifications
Chip breakerNF
Clearance codeN
Coating finishTiCN/Al2O3/TiN
Coating processCVD
Corner radius0.0080
Full radiusNo
Included angle35.0
Inscribed circle in5/16
Insert holding methodClamp; Pin
Insert length0.4880
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code2.5-0
Insert styleVNMG
Insert thickness in5/32
Iso codeVNMG 2.5-0-NF
Length range0.4000 - 0.5000
Manufacturer gradeIC6015
Maximum depth of cut0.0980
Primary workpiece materialStainless Steel
RakePositive
Relief angle0
Secondary workpiece materialNone
Single or double endDouble
StandardsISO 13399
Tolerance codeM
