Iscar

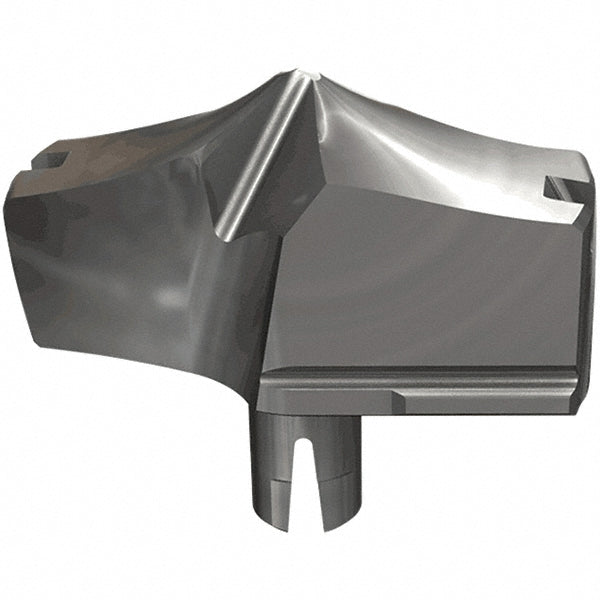

Carbide Insert, Grade IC908, TiAlN - Iscar 5567055
MFR# 5567055Series HFP-IQ
$191.46List $245.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5567055 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, cast iron.
Specifications
ApplicationsHole Making; Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter1.3780
Drill point angle137
Flute length (mm)12.00
Flute typeHelical
Functional length0.4767
Height0.776
Included angle degree137
Insert geometryP
Insert holding methodClamp
Insert seat size35
Iso numberHFP 350-SPADE IQ
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.4767
Point typeStandard
Primary workpiece materialSteel; Cast Iron
Secondary workpiece materialStainless Steel; Superalloys & Titanium; Hard Material
Spiral typeRegular Spiral
StandardsISO 13399
StyleHFP-IQ
Tip materialSolid Carbide
Web thinningWeb Thinned
