Iscar

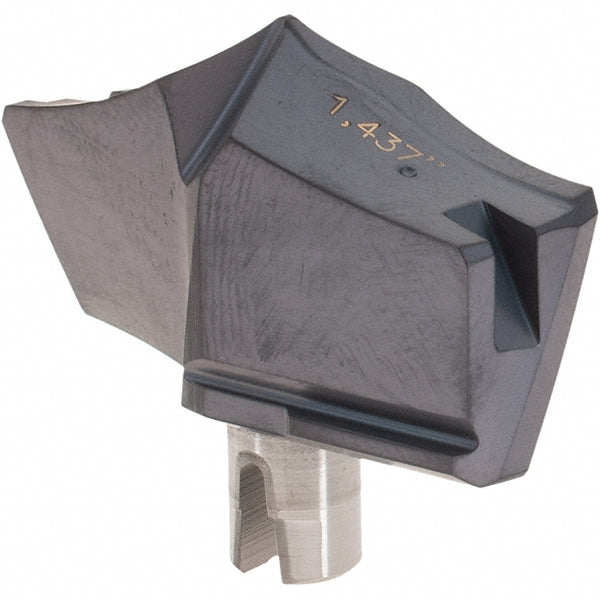

Carbide Insert, Grade IC908, TiAlN - Iscar 5567058
MFR# 5567058Series HFP-IQ
$201.69List $258.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5567058 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, cast iron.
Specifications
ApplicationsHole Making; Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter1.4370
Drill point angle137
Flute length (mm)13.00
Flute typeHelical
Functional length0.5004
Height in1/2
Included angle degree137
Insert geometryP
Insert holding methodClamp
Insert seat size36
Iso numberHFP 365-SPADE IQ
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.5004
Point typeStandard
Primary workpiece materialSteel; Cast Iron
Secondary workpiece materialStainless Steel; Superalloys & Titanium; Hard Material
Spiral typeRegular Spiral
StandardsISO 13399
StyleHFP-IQ
Tip materialSolid Carbide
Web thinningWeb Thinned
