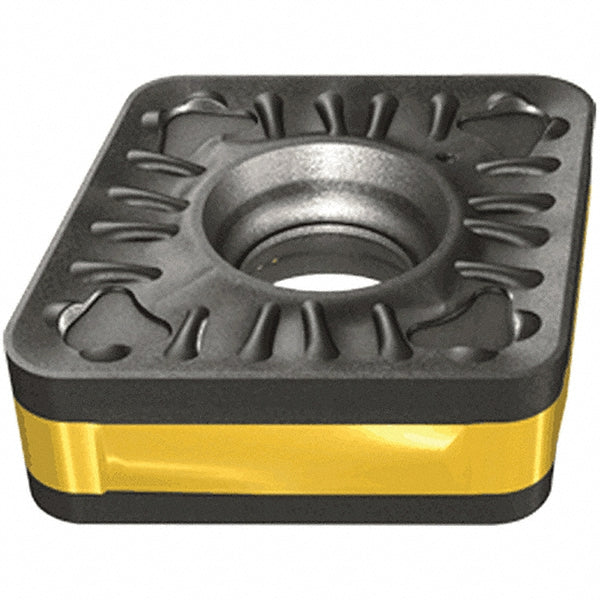

COMG 643-R3P-IQ Solid Carbide Insert, Grade IC8150, TiCN - Iscar 5567070
MFR# 5567070ISO/ANSI# COMG 643-R3P-IQSeries Isoturn
$42.96List $55.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
GradeIC8150
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5567070 is a COMG 643-R3P-IQ solid carbide indexable insert, grade IC8150, TiCN coated. Suited for cast iron, steel.
Specifications
Chip breakerR3P-IQ
Clearance codeO
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Full radiusNo
Included angle80.0
Inscribed circle in3/4
Insert holding methodScrew
Insert length0.7610
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code643
Insert styleCOMG
Insert thickness in1/4
Iso codeCOMG 643-R3P-IQ
Length range0.7000 - 10.0000
Manufacturer gradeIC8150
Maximum depth of cut0.4720
Primary workpiece materialCast Iron; Steel
Relief angle7
Secondary workpiece materialNone
Single or double endDouble
StandardsISO 13399
Tolerance codeM
