Iscar

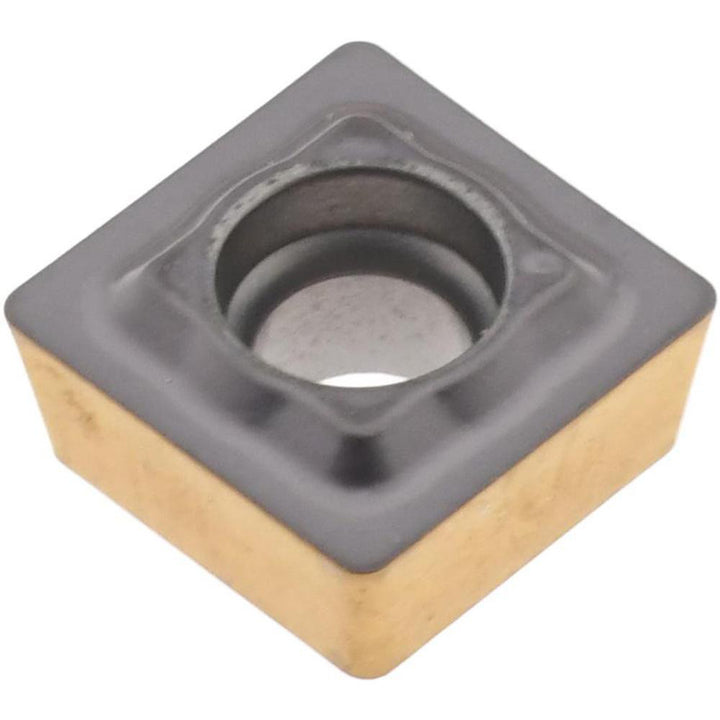

ISO 13399 Solid Carbide Insert, Grade IC808, Coated - Iscar 5567137
MFR# 5567137ISO/ANSI# ISO 13399Series DR-TWIST
$17.56List $22.10
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 5567137 is a ISO 13399 solid carbide indexable insert, grade IC808, Coated coated. Suited for universal.
Specifications
ChipbreakerHD
Coating finishCoated
Coating processPVD
Corner radius0.0160
Inscribed circle0.2130
Insert materialSolid Carbide
Insert size050204
Insert size code05
Insert styleSOMX
Iso codeISO 13399
Length0.2130
Manufacturer gradeIC808
Material gradeFine Grain
Primary workpiece materialUniversal
ShapeSquare
StandardsISO 13399
Thickness0.0940
Width0.2130
