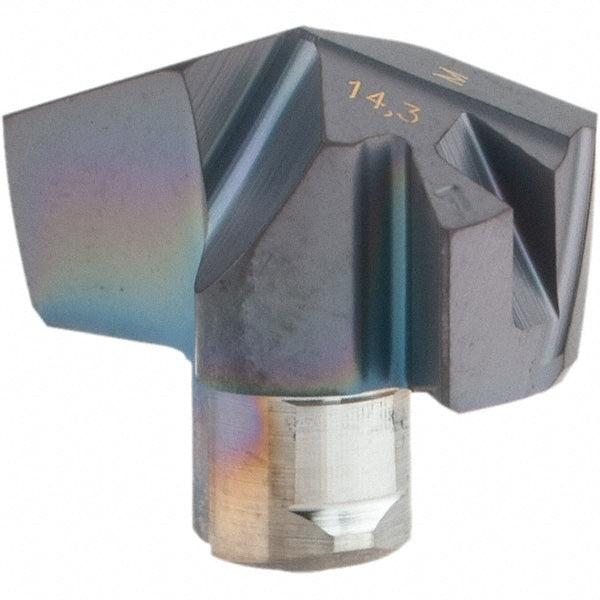

Carbide Insert, Grade IC908, TiAlN - Iscar 5567145
MFR# 5567145Series ICM
$100.65List $128.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5567145 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
ApplicationsHole Making; Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.5630
Drill point angle140
Flute length (mm)6.00
Flute typeHelical
Functional length0.2360
Height0.321
Included angle degree140
Insert geometryM
Insert holding methodClamp
Insert seat size14
Iso numberICM 143
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.3211
Point typeStandard
Primary workpiece materialStainless Steel; Superalloys & Titanium
Secondary workpiece materialSteel; Cast Iron; Hard Material
Spiral typeRegular Spiral
StandardsISO 13399
StyleICM
Tip materialSolid Carbide
Web thinningWeb Thinned
