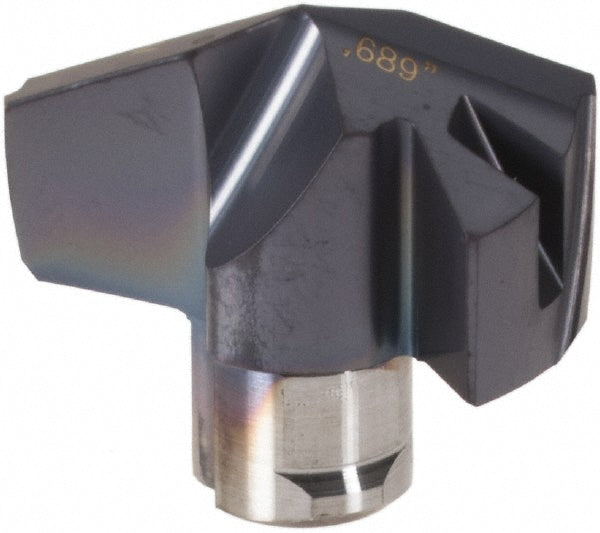

Carbide Insert, Grade IC907, TiAlN - Iscar 5567152
MFR# 5567152Series ICM
$117.05List $149.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC907
CoatingTiAlN
Description
The Iscar 5567152 is a carbide indexable insert, grade IC907, TiAlN coated. Suited for stainless steel, superalloy, titanium.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.6890
Drill point angle140
Flute typeSpiral
Functional length0.2850
Height0.3900
Included angle degree140
Insert geometryM
Insert holding methodTwist
Insert seat size17
Iso numberICM 175
Manufacturer gradeIC907
Material gradeSubmicron
Number of flutes2
Overall length projection0.3900
Point typeThinned
Primary workpiece materialStainless Steel; Superalloy; Titanium
Secondary workpiece materialSteel; Cast Iron; Hard Material
Spiral typeSlow Spiral
StandardsISO 13399
StyleT-Land
Tip materialSolid Carbide
Web thinningWeb Thinned
