Iscar

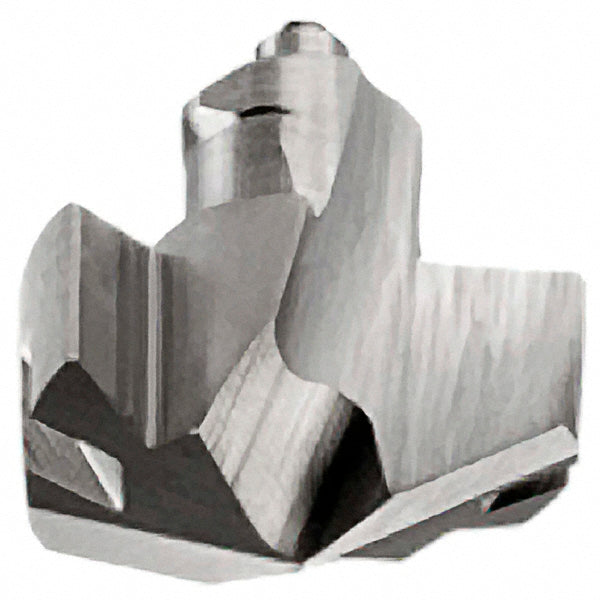

Carbide Insert, Grade IC907, TiAlN - Iscar 5567154
MFR# 5567154Series ICM
$88.31List $113.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC907
CoatingTiAlN
Description
The Iscar 5567154 is a carbide indexable insert, grade IC907, TiAlN coated. Suited for stainless steel, superalloy, titanium.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.3150
Drill point angle140
Flute typeSpiral
Functional length0.1650
Height0.2130
Included angle degree140
Insert geometryM
Insert holding methodTwist
Insert seat size8
Iso numberICM 080
Manufacturer gradeIC907
Material gradeSubmicron
Number of flutes2
Overall length projection0.2130
Point typeThinned
Primary workpiece materialStainless Steel; Superalloy; Titanium
Secondary workpiece materialSteel; Cast Iron; Hard Material
Spiral typeSlow Spiral
StandardsISO 13399
StyleT-Land
Tip materialSolid Carbide
Web thinningWeb Thinned
