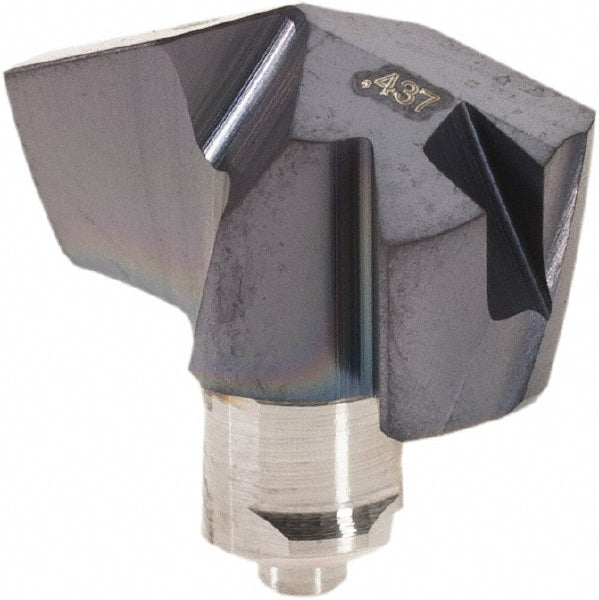

Carbide Insert, Grade IC907, TiAlN - Iscar 5567170
MFR# 5567170Series ICM
$97.06List $124.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC907
CoatingTiAlN
Description
The Iscar 5567170 is a carbide indexable insert, grade IC907, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
ApplicationsHole Making; Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter in7/16
Drill point angle140
Flute length (mm)5.00
Flute typeHelical
Functional length0.1938
Height0.26
Included angle degree140
Insert geometryM
Insert holding methodClamp
Insert seat size11
Iso numberICM 111
Manufacturer gradeIC907
Material gradeSubmicron
Number of flutes2
Overall length projection0.2600
Point typeStandard
Primary workpiece materialStainless Steel; Superalloys & Titanium
Secondary workpiece materialSteel; Cast Iron; Hard Material
Spiral typeRegular Spiral
StandardsISO 13399
StyleICM
Tip materialSolid Carbide
Web thinningWeb Thinned
