Iscar

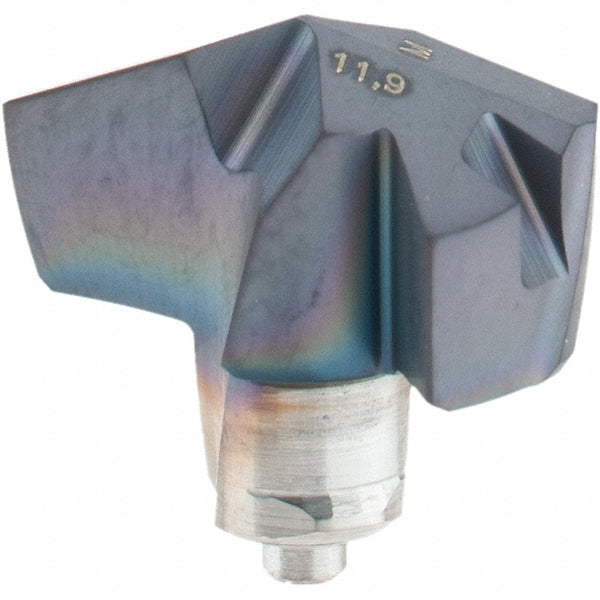

Carbide Insert, Grade IC907, TiAlN - Iscar 5567184
MFR# 5567184Series ICM
$97.06List $124.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC907
CoatingTiAlN
Description
The Iscar 5567184 is a carbide indexable insert, grade IC907, TiAlN coated. Suited for stainless steel, superalloy, titanium.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter in15/32
Drill point angle140
Flute typeSpiral
Functional length0.1880
Height0.2600
Included angle degree140
Insert geometryM
Insert holding methodTwist
Insert seat size11
Iso numberICM 119
Manufacturer gradeIC907
Material gradeSubmicron
Number of flutes2
Overall length projection0.2600
Point typeThinned
Primary workpiece materialStainless Steel; Superalloy; Titanium
Secondary workpiece materialSteel; Cast Iron; Hard Material
Spiral typeSlow Spiral
StandardsISO 13399
StyleT-Land
Tip materialSolid Carbide
Web thinningWeb Thinned
