Iscar

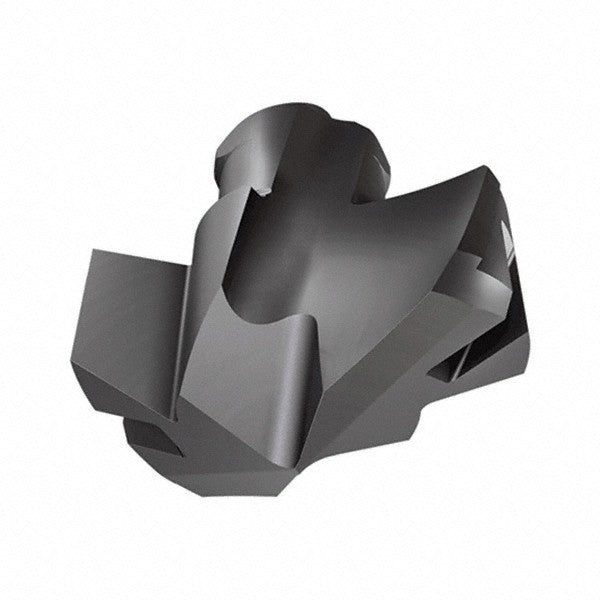

Carbide Insert, Grade IC907, TiAlN - Iscar 5567284
MFR# 5567284Series ICK
$104.24List $133.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC907
CoatingTiAlN
Description
The Iscar 5567284 is a carbide indexable insert, grade IC907, TiAlN coated. Suited for cast iron.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.6060
Drill point angle140
Flute typeSpiral
Functional length0.2020
Height in11/32
Included angle degree140
Insert geometryK
Insert holding methodTwist
Insert seat size15
Iso numberICK 154
Manufacturer gradeIC907
Material gradeSubmicron
Number of flutes2
Overall length projection0.3440
Point typeThinned
Primary workpiece materialCast Iron
Secondary workpiece materialSteel; Stainless Steel; Super-alloys & Titanium; Hard Material
Spiral typeSlow Spiral
StandardsISO 13399
StyleHoned Cutting Edge
Tip materialSolid Carbide
Web thinningWeb Thinned
