Iscar

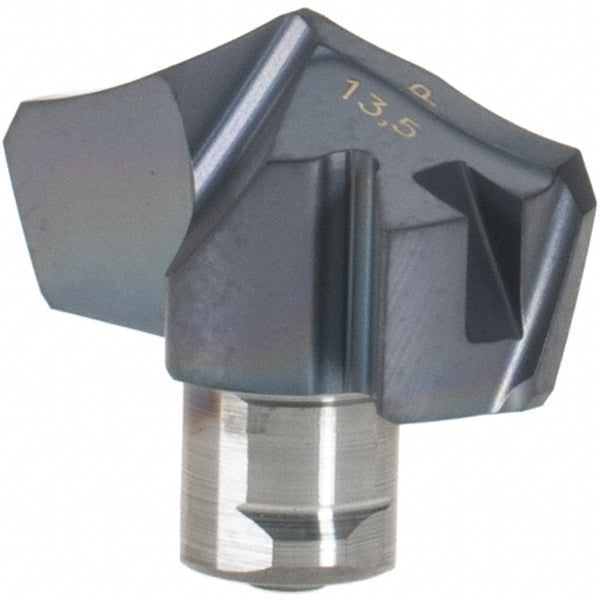

Carbide Insert, Grade IC908, TiAlN - Iscar 5567342
MFR# 5567342Series HCP-IQ
$105.29List $132.50
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 2 — minimum order 2
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5567342 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, cast iron.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter in17/32
Drill point angle134
Flute typeSpiral
Functional length0.1610
Height0.2990
Included angle degree134
Insert geometryP
Insert holding methodTwist
Insert seat size13
Iso numberHCP 135-IQ
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.2990
Point typeSelf Centering
Primary workpiece materialSteel; Cast Iron
Secondary workpiece materialStainless Steel; Super-alloys & Titanium; Hard Material
Spiral typeSlow Spiral
StandardsISO 13399
StyleDeep Hole; Self-Centering
Tip materialSolid Carbide
Web thinningWeb Thinned
