Iscar

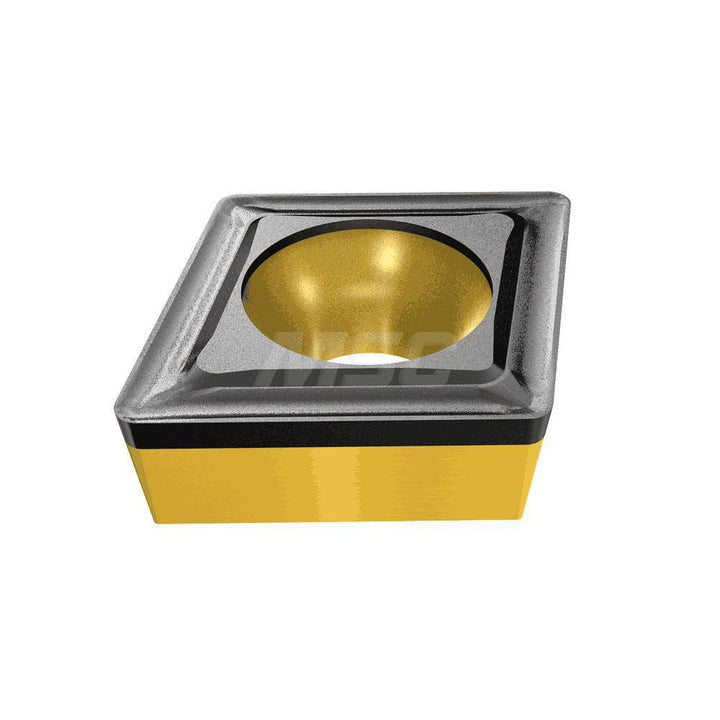

CCMT 2-1-14 Carbide Insert, Grade IC830, TiAlN - Iscar 5567367
MFR# 5567367ISO/ANSI# CCMT 2-1-14Series Isoturn
$13.64List $17.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeIC830
MaterialCarbide
CoatingTiAlN
Description
The Iscar 5567367 is a CCMT 2-1-14 carbide indexable insert, grade IC830, TiAlN coated.
Specifications
Chip breaker14
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0160
Hole diameter0.1100
Included angle80
Inscribed circle in1/4
Insert handRight Hand
Insert length0.2480
Insert materialCarbide
Insert shapeDiamond
Insert size code2-1
Insert styleCCMT
Insert thickness0.0940
Iso codeCCMT 2-1-14
Length range0.0000 - 0.3000
Manufacturers catalog number5567367
Manufacturer gradeIC830
Maximum depth of cut0.0980
Multi use applicationTurning
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
