Iscar

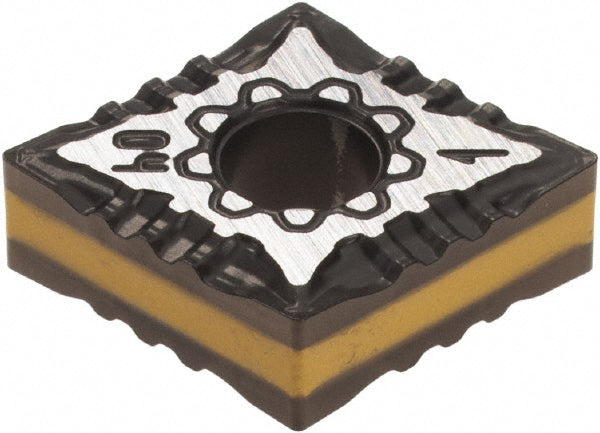

CNMG 431-F3P Solid Carbide Insert, Grade IC8250, TiCN - Iscar 5567387
MFR# 5567387ISO/ANSI# CNMG 431-F3PSeries Isoturn
$18.01List $23.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC8250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5567387 is a CNMG 431-F3P solid carbide indexable insert, grade IC8250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerF3P
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Full radiusNo
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 431-F3P
Length range0.5000 - 0.6000
Manufacturer gradeIC8250
Maximum depth of cut0.1380
Multi use applicationFacing
Multi use toolYes
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle0
Secondary workpiece materialNone
Single or double endDouble
StandardsISO 13399
Tolerance codeM
