Iscar

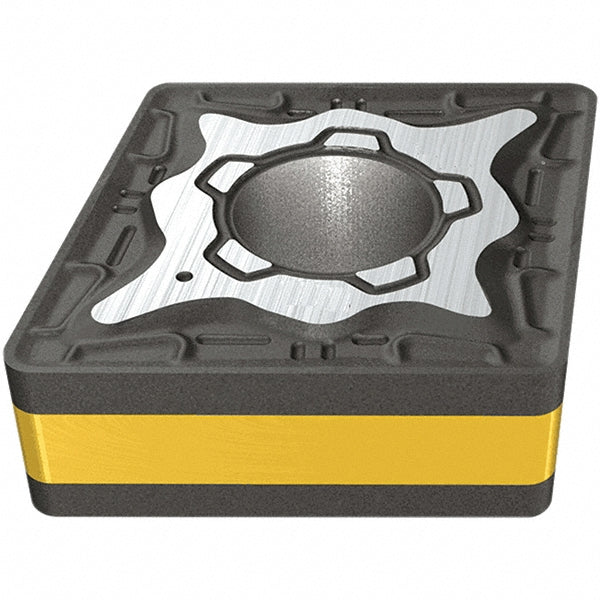

CNMG 433-M3P Solid Carbide Insert, Grade IC8250, TiCN - Iscar 5567464
MFR# 5567464ISO/ANSI# CNMG 433-M3PSeries Isoturn
$18.01List $23.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeIC8250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5567464 is a CNMG 433-M3P solid carbide indexable insert, grade IC8250, TiCN coated. Suited for m, p.
Specifications
Chip breakerM3P
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius0.0470
Included angle80.0
Inscribed circle0.5000
Insert handRight Hand
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code433
Insert styleCNMG
Insert thickness0.1870
Iso codeCNMG 433-M3P
Length range0.5000 - 0.6000
Manufacturers catalog number5567464
Manufacturer gradeIC8250
Maximum depth of cut0.2170
Primary workpiece materialM; P
RakePositive
Secondary workpiece materialNone
StandardsISO 13399
Tolerance codeM
