Iscar

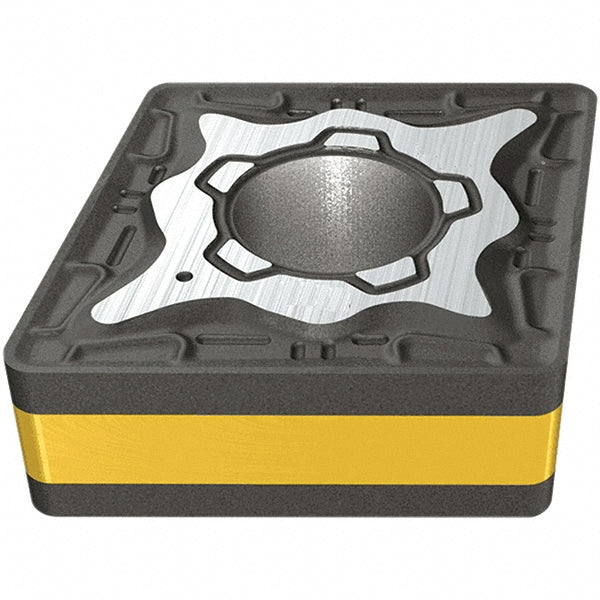

CNMG 643-M3P Carbide Insert, Grade IC8250, TiCN - Iscar 5567468
MFR# 5567468ISO/ANSI# CNMG 643-M3PSeries Isoturn
$41.02List $51.70
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
GradeIC8250
MaterialCarbide
CoatingTiCN
Description
The Iscar 5567468 is a CNMG 643-M3P carbide indexable insert, grade IC8250, TiCN coated.
Specifications
Chip breakerM3P
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius0.0470
Included angle80
Inscribed circle in3/4
Insert handRight Hand
Insert length0.7600
Insert materialCarbide
Insert shapeDiamond
Insert size code643
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 643-M3P
Length range0.7000 - 10.0000
Manufacturers catalog number5567468
Manufacturer gradeIC8250
Maximum depth of cut0.3390
RakePositive
StandardsISO 13399
Tolerance codeM
