Iscar

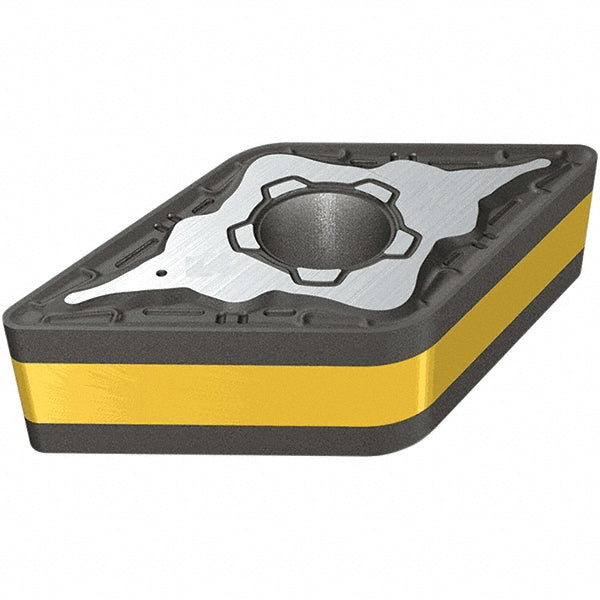

ISO 13399 Solid Carbide Insert, Grade IC8150, TiCN/Al2O3/TiN - Iscar 5567482
MFR# 5567482ISO/ANSI# ISO 13399Cat# DNMG 110408-M3PSeries Isoturn
$20.11List $25.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC8150
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Iscar 5567482 is a ISO 13399 solid carbide indexable insert, grade IC8150, TiCN/Al2O3/TiN coated. Suited for cast iron, steel.
Specifications
Chip breakerM3P
Clearance codeN
Coating finishTiCN/Al2O3/TiN
Coating processCVD
Corner radius in1/32
Included angle55.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.4579
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code332
Insert styleDNMG
Insert thickness in3/16
Iso codeISO 13399
Length range0.4000 - 0.5000
Manufacturers catalog numberDNMG 110408-M3P
Manufacturer gradeIC8150
Maximum depth of cut0.1969
Multi use toolNo
Primary workpiece materialCast Iron; Steel
RakePositive
Relief angle0
Single or double endDouble
StandardsISO 13399
Tolerance codeM
