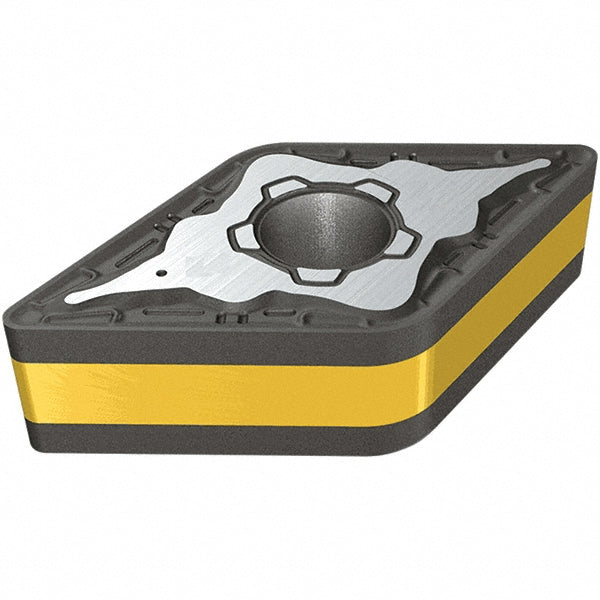

DNMG 432-M3P Carbide Insert, Grade IC8150, TiCN - Iscar 5567484

Iscar

DNMG 432-M3P Carbide Insert, Grade IC8150, TiCN - Iscar 5567484

MFR# 5567484ISO/ANSI# DNMG150408Series Isoturn

$24.17List $31.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeIC8150
MaterialCarbide
CoatingTiCN

Description

The Iscar 5567484 is a DNMG 432-M3P carbide indexable insert, grade IC8150, TiCN coated.

Specifications

Ansi insert codeDNMG432
Ansi size code432
Chip breakerM3P
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius0.0310
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance; Hardened Materials (H) - High Wear-Resistance
Included angle55
Inscribed circle in1/2
Insert handRight Hand
Insert length0.6100
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code432
Insert styleDNMG
Insert thickness0.1870
Iso codeDNMG 432-M3P
Iso insert codeDNMG150408
Iso size code150408
Length range0.6000 - 0.6500
Manufacturers catalog number5567484
Manufacturer gradeIC8150
Maximum depth of cut0.2360
Multi use applicationTurning
RakePositive
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
