Iscar

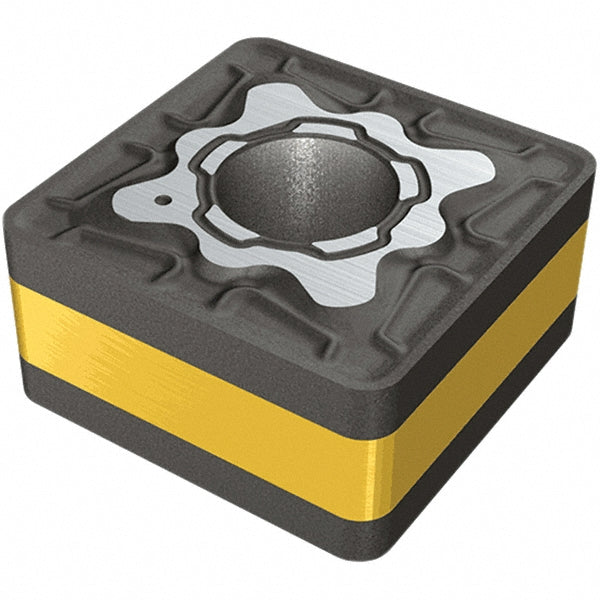

SNMG 432-M3P Carbide Insert, Grade IC8250, TiCN - Iscar 5567497
MFR# 5567497ISO/ANSI# SNMG 432-M3PSeries Isoturn
$17.00List $21.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeIC8250
MaterialCarbide
CoatingTiCN
Description
The Iscar 5567497 is a SNMG 432-M3P carbide indexable insert, grade IC8250, TiCN coated.
Specifications
Chip breakerM3P
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius0.0310
Included angle90
Inscribed circle in1/2
Insert handRight Hand
Insert materialCarbide
Insert shapeSquare
Insert size code432
Insert styleSNMG
Insert thickness0.1870
Iso codeSNMG 432-M3P
Manufacturers catalog number5567497
Manufacturer gradeIC8250
Maximum depth of cut0.2360
Multi use applicationTurning
RakePositive
StandardsISO 13399
Tolerance codeM
Width in1/2
