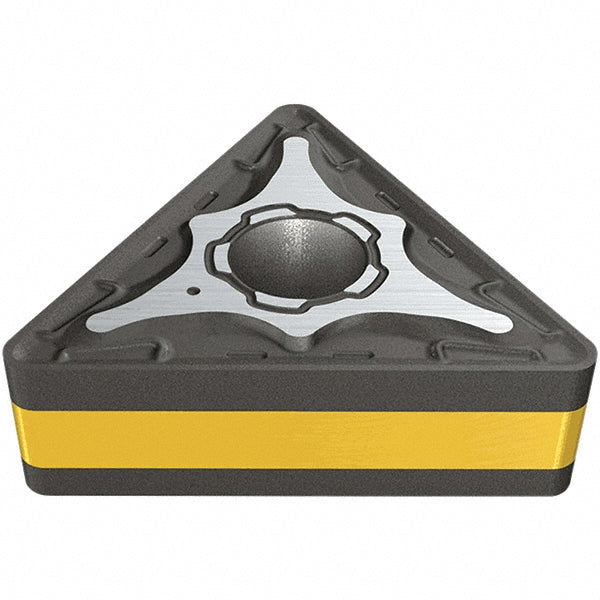

ISO 13399 Carbide Insert, Grade IC8250, TiCN - Iscar 5567503
MFR# 5567503ISO/ANSI# ISO 13399Cat# TNMG 160408-M3PSeries Isoturn
$14.44List $18.20
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
Sold in multiples of 10 — minimum order 10
Check price & lead time first →- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeIC8250
MaterialCarbide
CoatingTiCN
Description
The Iscar 5567503 is a ISO 13399 carbide indexable insert, grade IC8250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerM3P
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Included angle60
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.6496
Insert materialCarbide
Insert shapeTriangle
Insert size code332
Insert styleTNMG
Insert thickness in3/16
Iso codeISO 13399
Length range0.6000 - 0.6500
Manufacturers catalog numberTNMG 160408-M3P
Manufacturer gradeIC8250
Maximum depth of cut0.1969
Multi use toolNo
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
