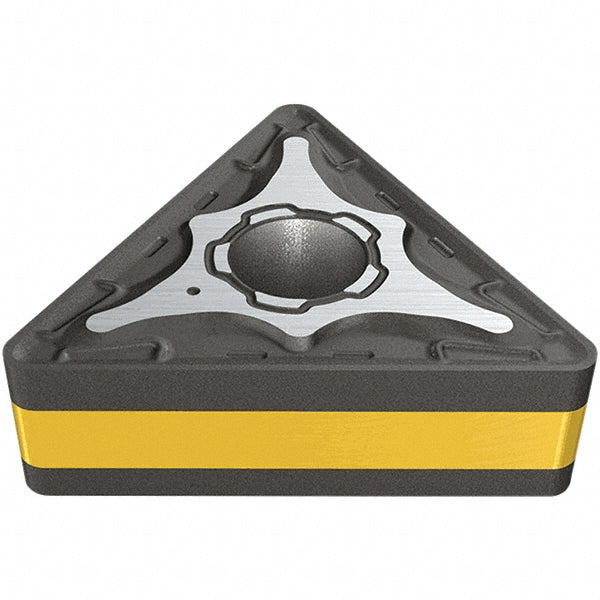

TNMG 432-M3P Carbide Insert, Grade IC8250, TiCN - Iscar 5567505

Iscar

TNMG 432-M3P Carbide Insert, Grade IC8250, TiCN - Iscar 5567505

MFR# 5567505ISO/ANSI# TNMG220408Series Isoturn

$20.74List $26.60 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeT - Triangle
GradeIC8250
MaterialCarbide
CoatingTiCN

Description

The Iscar 5567505 is a TNMG 432-M3P carbide indexable insert, grade IC8250, TiCN coated.

Specifications

Ansi insert codeTNMG432
Ansi size code432
Chip breakerM3P
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius0.0310
Grade characteristicsSteel (P) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle60
Inscribed circle in1/2
Insert handRight Hand
Insert length0.8660
Insert materialCarbide
Insert shapeT - Triangle
Insert size code432
Insert styleTNMG
Insert thickness0.1870
Iso codeTNMG 432-M3P
Iso insert codeTNMG220408
Iso size code220408
Length range0.7000 - 10.0000
Manufacturers catalog number5567505
Manufacturer gradeIC8250
Maximum depth of cut0.2600
Multi use applicationTurning
RakePositive
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
