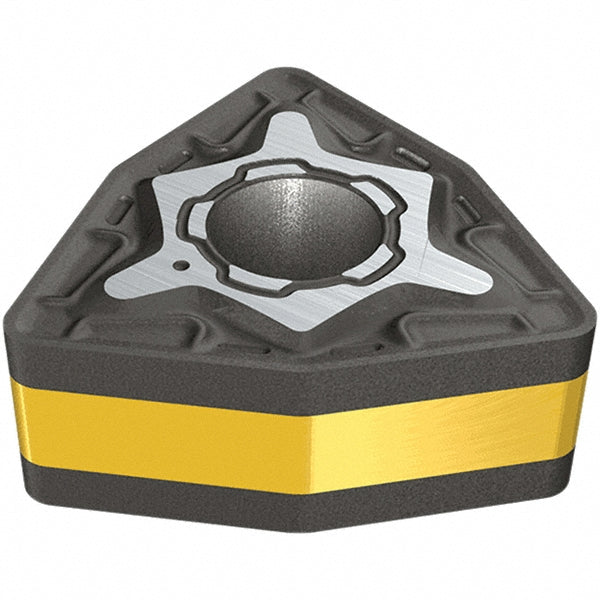

ISO 13399 Carbide Insert, Grade IC8250, TiCN - Iscar 5567520

Iscar

ISO 13399 Carbide Insert, Grade IC8250, TiCN - Iscar 5567520

MFR# 5567520ISO/ANSI# WNMG060404Cat# WNMG 060404-M3PSeries Isoturn

$15.05List $19.30 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeW - Trigon 80-Deg
GradeIC8250
MaterialCarbide
CoatingTiCN

Description

The Iscar 5567520 is a ISO 13399 carbide indexable insert, grade IC8250, TiCN coated. Suited for stainless steel, steel.

Specifications

Ansi insert codeWNMG331
Ansi size code331
Chip breakerM3P
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle80
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.2567
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code331
Insert styleWNMG
Insert thickness in3/16
Iso codeISO 13399
Iso insert codeWNMG060404
Iso size code060404
Length range0.0000 - 0.3000
Manufacturers catalog numberWNMG 060404-M3P
Manufacturer gradeIC8250
Maximum depth of cut0.0984
Multi use toolNo
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle0
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
