Iscar

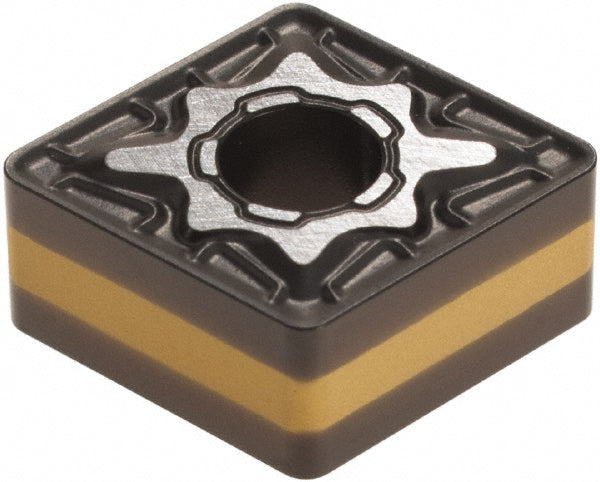

CNMG090408-M3P Carbide Insert, Grade IC8250, TiCN - Iscar 5567566
MFR# 5567566ISO/ANSI# CNMG090408-M3PCat# CNMG 090408-M3PSeries Isoturn
$13.64List $17.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC8250
MaterialCarbide
CoatingTiCN
Description
The Iscar 5567566 is a CNMG090408-M3P carbide indexable insert, grade IC8250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerM3P
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Included angle80
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.3807
Insert materialCarbide
Insert shapeDiamond
Insert size code332
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG090408-M3P
Length range0.3000 - 0.4000
Manufacturers catalog numberCNMG 090408-M3P
Manufacturer gradeIC8250
Maximum depth of cut0.1772
Multi use toolNo
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
