Iscar

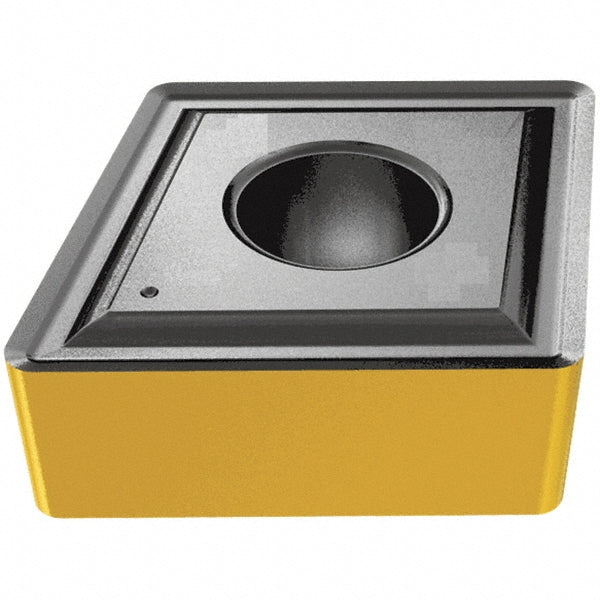

CNMG 431-VL Solid Carbide Insert, Grade IC806, AlTiN - Iscar 5567594
MFR# 5567594ISO/ANSI# CNMG 431-VLSeries Isoturn
$16.37List $21.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeIC806
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 5567594 is a CNMG 431-VL solid carbide indexable insert, grade IC806, AlTiN coated. Suited for s.
Specifications
Chip breakerVL
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius0.0160
Included angle80.0
Inscribed circle0.5000
Insert handRight Hand
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code431
Insert styleCNMG
Insert thickness0.1870
Iso codeCNMG 431-VL
Length range0.5000 - 0.6000
Manufacturers catalog number5567594
Manufacturer gradeIC806
Maximum depth of cut0.1180
Primary workpiece materialS
Secondary workpiece materialNone
StandardsISO 13399
Tolerance codeM
