Iscar

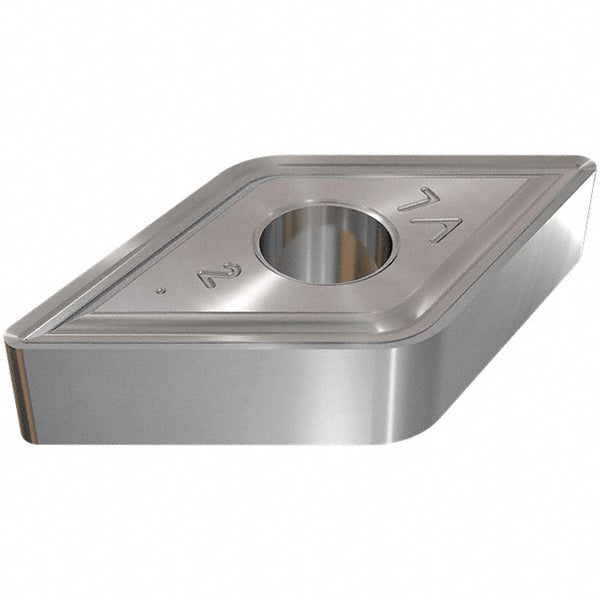

ISO 13399 Solid Carbide Insert, Grade IC806, TiN/TiAlN - Iscar 5567596
MFR# 5567596ISO/ANSI# ISO 13399Cat# DNMG 110404-VLSeries Isoturn
$15.36List $19.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC806
MaterialSolid Carbide
CoatingTiN/TiAlN
Description
The Iscar 5567596 is a ISO 13399 solid carbide indexable insert, grade IC806, TiN/TiAlN coated. Suited for superalloy, titanium.
Specifications
Chip breakerVL
Clearance codeN
Coating finishTiN/TiAlN
Coating processPVD
Corner radius in1/64
Included angle55.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.4579
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code331
Insert styleDNMG
Insert thickness in3/16
Iso codeISO 13399
Length range0.4000 - 0.5000
Manufacturers catalog numberDNMG 110404-VL
Manufacturer gradeIC806
Material gradeSubmicron
Maximum depth of cut0.1378
Multi use toolYes
Primary workpiece materialSuperalloy; Titanium
Relief angle0
StandardsISO 13399
Tolerance codeM
