Iscar

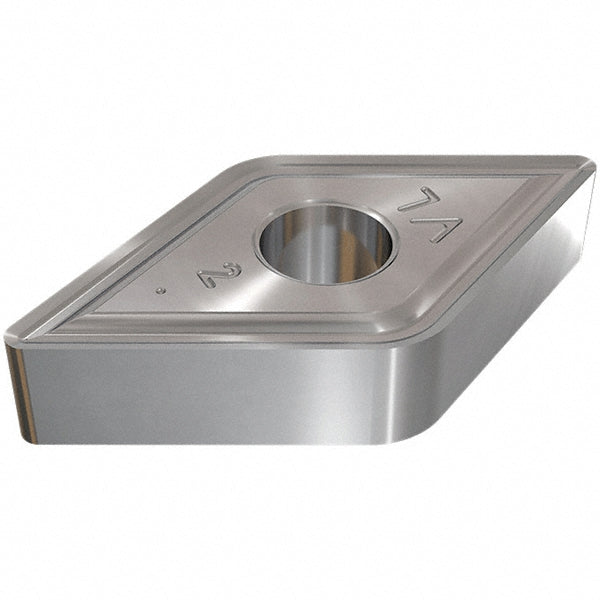

DNMG 431-VL Carbide Insert, Grade IC806, AlTiN - Iscar 5567598
MFR# 5567598ISO/ANSI# DNMG150404Series Isoturn
$22.29List $28.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeIC806
MaterialCarbide
CoatingAlTiN
Description
The Iscar 5567598 is a DNMG 431-VL carbide indexable insert, grade IC806, AlTiN coated.
Specifications
Ansi insert codeDNMG431
Ansi size code431
Chip breakerVL
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius0.0160
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle55
Inscribed circle in1/2
Insert handRight Hand
Insert length0.6100
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code431
Insert styleDNMG
Insert thickness0.1870
Iso codeDNMG 431-VL
Iso insert codeDNMG150404
Iso size code150404
Length range0.6000 - 0.6500
Manufacturers catalog number5567598
Manufacturer gradeIC806
Maximum depth of cut0.1380
Multi use applicationTurning
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
