Iscar

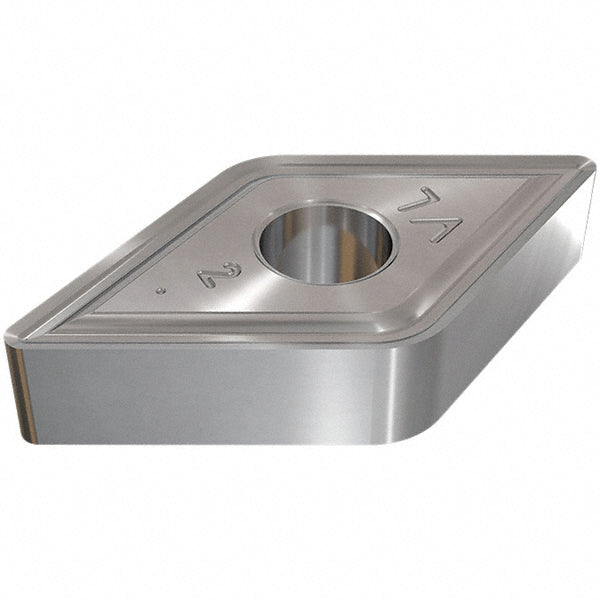

DNMG 432-VL Solid Carbide Insert, Grade IC806, AlTiN - Iscar 5567599
MFR# 5567599ISO/ANSI# DNMG 432-VLSeries Isoturn
$22.29List $28.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeIC806
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 5567599 is a DNMG 432-VL solid carbide indexable insert, grade IC806, AlTiN coated. Suited for s.
Specifications
Chip breakerVL
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius0.0310
Included angle55.0
Inscribed circle0.5000
Insert handRight Hand
Insert length0.6100
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleDNMG
Insert thickness0.1870
Iso codeDNMG 432-VL
Length range0.6000 - 0.6500
Manufacturers catalog number5567599
Manufacturer gradeIC806
Maximum depth of cut0.1380
Multi use applicationTurning
Primary workpiece materialS
Secondary workpiece materialNone
StandardsISO 13399
Tolerance codeM
