Iscar

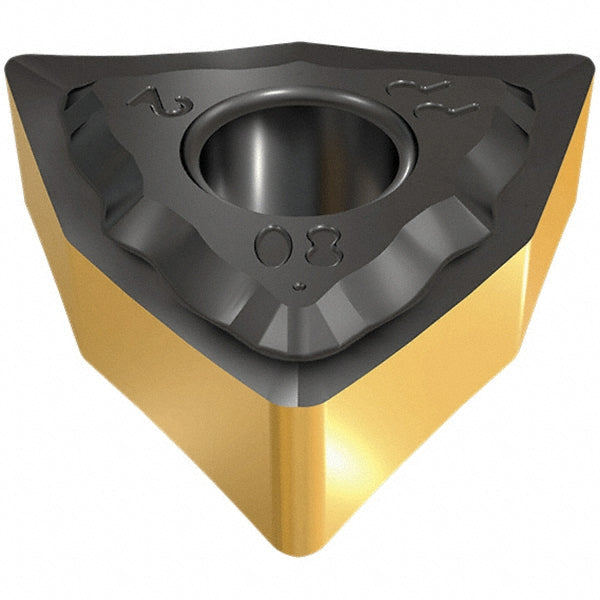

WNMG 432-PP Solid Carbide Insert, Grade IC830, TiAlN - Iscar 5567679
MFR# 5567679ISO/ANSI# WNMG 432-PPSeries Isoturn
$18.25List $23.00
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeIC830
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5567679 is a WNMG 432-PP solid carbide indexable insert, grade IC830, TiAlN coated. Suited for m, p, s.
Specifications
Chip breakerPP
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0310
Included angle80.0
Inscribed circle0.5000
Insert handRight Hand
Insert length0.3430
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness0.1870
Iso codeWNMG 432-PP
Length range0.3000 - 0.4000
Manufacturers catalog number5567679
Manufacturer gradeIC830
Maximum depth of cut0.1570
Primary workpiece materialM; P; S
RakePositive
Secondary workpiece materialNone
StandardsISO 13399
Tolerance codeM
