Iscar

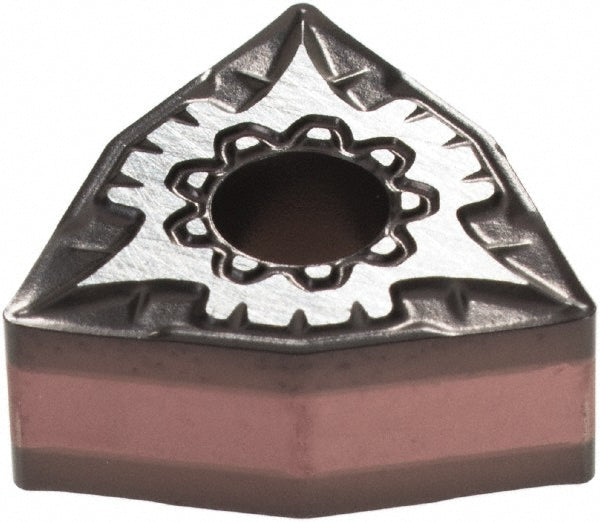

ISO 13399 Solid Carbide Insert, Grade IC6015, TiCN/Al2O3/TiN - Iscar 5567827
MFR# 5567827ISO/ANSI# ISO 13399Cat# WNMG 060404-F3MSeries Isoturn
$15.05List $19.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeIC6015
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Iscar 5567827 is a ISO 13399 solid carbide indexable insert, grade IC6015, TiCN/Al2O3/TiN coated. Suited for stainless steel.
Specifications
Chip breakerF3M
Clearance codeN
Coating finishTiCN/Al2O3/TiN
Coating processCVD
Corner radius in1/64
Included angle80.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.2567
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code331
Insert styleWNMG
Insert thickness in3/16
Iso codeISO 13399
Length range0.0000 - 0.3000
Manufacturers catalog numberWNMG 060404-F3M
Manufacturer gradeIC6015
Maximum depth of cut0.0591
Multi use toolNo
Primary workpiece materialStainless Steel
Relief angle0
Single or double endDouble
StandardsISO 13399
Tolerance codeM
