Iscar

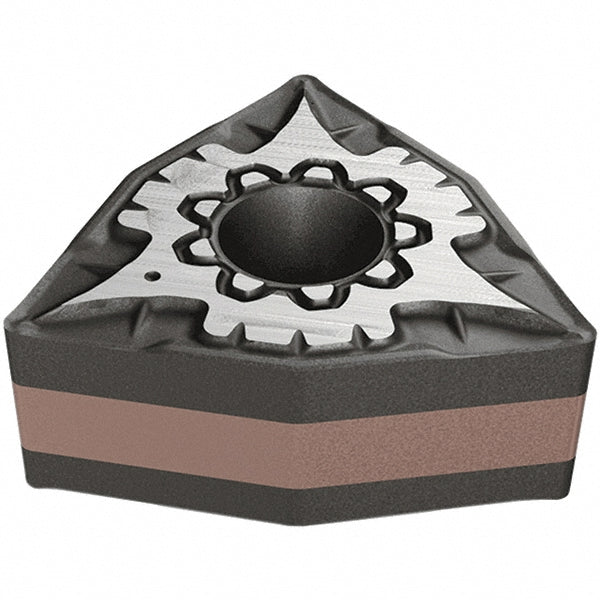

WNMG 431-F3M Carbide Insert, Grade IC6015, TiCN - Iscar 5567833
MFR# 5567833ISO/ANSI# WNMG080404Series Isoturn
$19.49List $25.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeIC6015
MaterialCarbide
CoatingTiCN
Description
The Iscar 5567833 is a WNMG 431-F3M carbide indexable insert, grade IC6015, TiCN coated.
Specifications
Ansi insert codeWNMG431
Ansi size code431
Chip breakerF3M
Chip breaker operationFinishing
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0160
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle80
Inscribed circle in1/2
Insert handRight Hand
Insert length0.3430
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code431
Insert styleWNMG
Insert thickness0.1870
Iso codeWNMG 431-F3M
Iso insert codeWNMG080404
Iso size code080404
Length range0.3000 - 0.4000
Manufacturers catalog number5567833
Manufacturer gradeIC6015
Maximum depth of cut0.0590
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
