Iscar

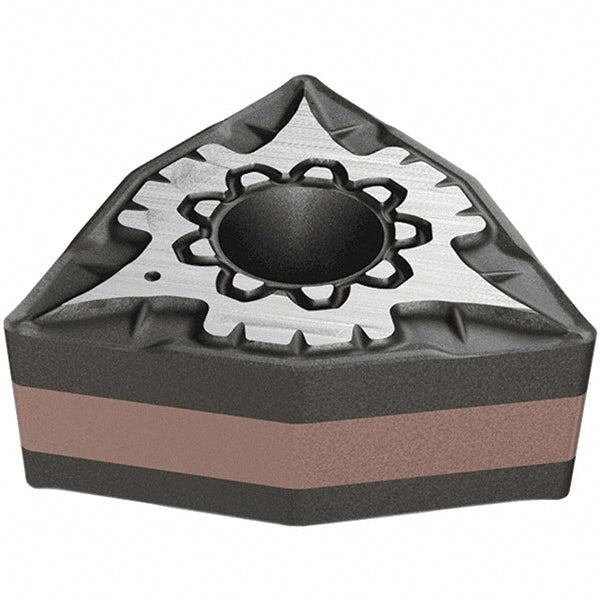

WNMG 432-F3M Carbide Insert, Grade IC6025, TiCN - Iscar 5567836
MFR# 5567836ISO/ANSI# WNMG 432-F3MSeries Isoturn
$19.49List $25.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeIC6025
MaterialCarbide
CoatingTiCN
Description
The Iscar 5567836 is a WNMG 432-F3M carbide indexable insert, grade IC6025, TiCN coated.
Specifications
Chip breakerF3M
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius0.0310
Included angle80
Inscribed circle in1/2
Insert handRight Hand
Insert length0.3430
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness0.1870
Iso codeWNMG 432-F3M
Length range0.3000 - 0.4000
Manufacturers catalog number5567836
Manufacturer gradeIC6025
Maximum depth of cut0.0590
StandardsISO 13399
Tolerance codeM
