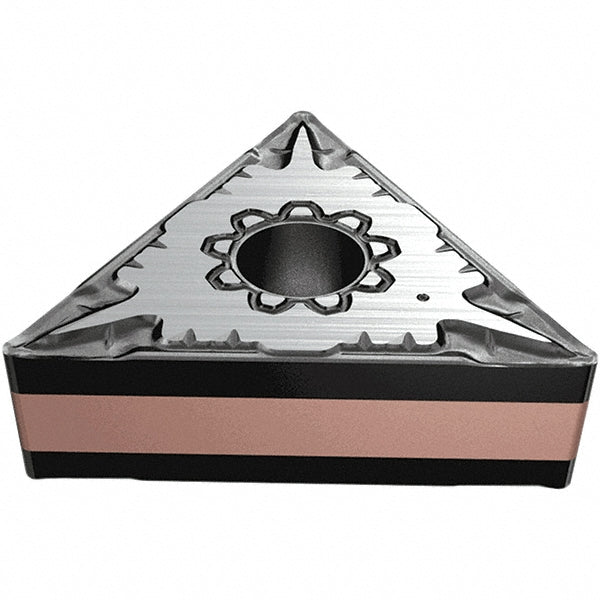

ISO 13399 Carbide Insert, Grade IC6025, TiCN - Iscar 5567840

Iscar

ISO 13399 Carbide Insert, Grade IC6025, TiCN - Iscar 5567840

MFR# 5567840ISO/ANSI# TNMG160404Cat# TNMG 160404-F3MSeries Isoturn

$12.16List $15.60 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeIC6025
MaterialCarbide
CoatingTiCN

Description

The Iscar 5567840 is a ISO 13399 carbide indexable insert, grade IC6025, TiCN coated. Suited for stainless steel.

Specifications

Ansi insert codeTNMG331
Ansi size code331
Chip breakerF3M
Chip breaker operationFinishing
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Grade characteristicsStainless Steel (M) - High Wear-Resistance to High Toughness
Included angle60
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.6496
Insert materialCarbide
Insert shapeT - Triangle
Insert size code331
Insert styleTNMG
Insert thickness in3/16
Iso codeISO 13399
Iso insert codeTNMG160404
Iso size code160404
Length range0.6000 - 0.6500
Manufacturers catalog numberTNMG 160404-F3M
Manufacturer gradeIC6025
Maximum depth of cut0.0591
Multi use toolNo
Primary workpiece materialStainless Steel
RakePositive
Relief angle0
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
