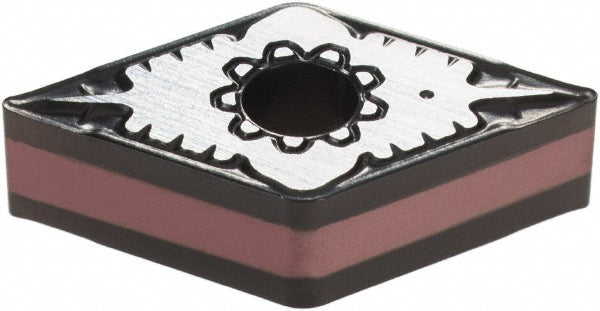

ISO 13399 Carbide Insert, Grade IC6015, TiCN - Iscar 5567859

MFR# 5567859ISO/ANSI# DNMG110404Cat# DNMG 110404-F3MSeries Isoturn

$20.11List $25.80 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeIC6015
MaterialCarbide
CoatingTiCN

Description

The Iscar 5567859 is a ISO 13399 carbide indexable insert, grade IC6015, TiCN coated. Suited for stainless steel.

Specifications

Ansi insert codeDNMG331
Ansi size code331
Chip breakerF3M
Chip breaker operationFinishing
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle55
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.4579
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code331
Insert styleDNMG
Insert thickness in3/16
Iso codeISO 13399
Iso insert codeDNMG110404
Iso size code110404
Length range0.4000 - 0.5000
Manufacturers catalog numberDNMG 110404-F3M
Manufacturer gradeIC6015
Maximum depth of cut0.0591
Multi use toolNo
Primary workpiece materialStainless Steel
RakePositive
Relief angle0
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
